Version	Category	Author	License	Source code
1.0.1	Devices	Thinger.io	MIT	thinger-io/plugins/wika-pgw23-100

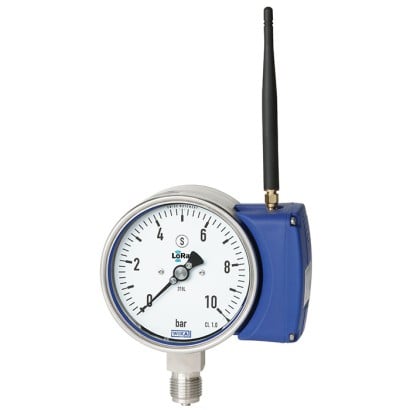

The WIKA PGW23-100 is a hybrid IIoT pressure gauge: it combines a mechanical on-site Bourdon tube display with wireless LoRaWAN® communication for remote monitoring. It is designed for process-industry applications where you want both local indication and centralized data collection.

Thinger.io Integration

This plugin allows you to integrate PGW23-100 devices into Thinger.io via a LoRaWAN Network Server (LNS) and the corresponding Thinger.io LoRaWAN plugin.

Requirements

A LoRaWAN server is required to communicate the WIKA PGW-23-100 with Thinger.io. Supported options include:

• The Things Stack
• LORIOT
• ChirpStack

Additionally, the corresponding Thinger.io plugin for the selected LoRaWAN server must be installed.

Get Started

Installation

Look for the plugin in the Thinger.io Plugin Store and install it in your Thinger.io instance. Once the plugin is installed a new Product will be created for this device.

Configuration

The Product is preconfigured to support auto-provisioning. Make sure the provisioning prefix matches the configuration used in your LoRaWAN server plugin. You may change this prefix if needed.

If using Bluetooth® for local setup, ensure the device is configured to use LoRaWAN and the appropriate AppEUI/AppKey are set correctly.

Usage

Begin sending uplink frames from the PGW-23-100. Devices and data buckets will be auto-provisioned in your Thinger.io account.

This plugin also includes:

• A prebuilt dashboard for data visualization.
• Preconfigured data buckets for storing sensor readings.
• Support for downlink commands to remotely configure the sensor.

Features Overview

• Wireless Protocols:

  • LoRaWAN® for long-range communication.
  • NFC for easy device commissioning and configuration.

• Sensor Capabilities:

  • High-accuracy pressure and temperature measurement.
  • Battery status and technical diagnostics.
  • Smart alarm triggering based on threshold or slope.

• Remote Configuration via Downlinks:

  • Sampling and transmission interval.
  • Alarm thresholds and hysteresis.
  • Reset to factory defaults.
  • Battery indicator reset.

• Power:

  • Replaceable battery with up to 10 years of lifetime (depending on transmission interval and environment).

Additional Resources

WIKA official resources and documentation:

• WIKA PGW-23-100 Product Page
• WIKA PGW-23-100 Configuration Guide

Changelog

1.0.1 - 2025-10-23

Fix

• Corrected Marketplace Product image.

1.0.0 - 2025-10-08

• Initial version
